TiAL Sport Q Blow Off Valve with 10 PSI Spring

TiAL Sport Q 50mm Blow Off Valve - 10 PSI Spring

The TiAL Sport Q 50mm Blow Off Valve with 10 PSI spring is the go-to BOV for turbocharged builds that need reliable, high-flow pressure relief without compromising throttle response. This is TiAL's updated Sport Q design - a direct upgrade over their original BOV - and it mounts to any standard TiAL V-band weld flange with no cutting or pipe modification required.

The 50.5mm valve is the core of what makes the Sport Q stand out. It flows roughly 60% more air than the previous TiAL BOV design, which translates to faster pressure release between shifts, smoother boost buildup, and less compressor surge stress on your turbo. A single Sport Q BOV supports builds up to 1,800 horsepower, making it just as relevant for a 300-whp street build as it is for a full-send race car.

Construction is CNC machined 6061 aluminum throughout - body, internals, and the banjo-style air fitting. The valve stem is hard anodized and Teflon lubricated for consistent, snag-free operation. TiAL uses a clamped Viton O-ring for the primary valve seal, which resists heat and chemical exposure far better than standard rubber seals. The actuator diaphragm is high-temp silicone reinforced with Nomex fabric, so it holds up in tight, hot engine bays without cracking or degrading over time.

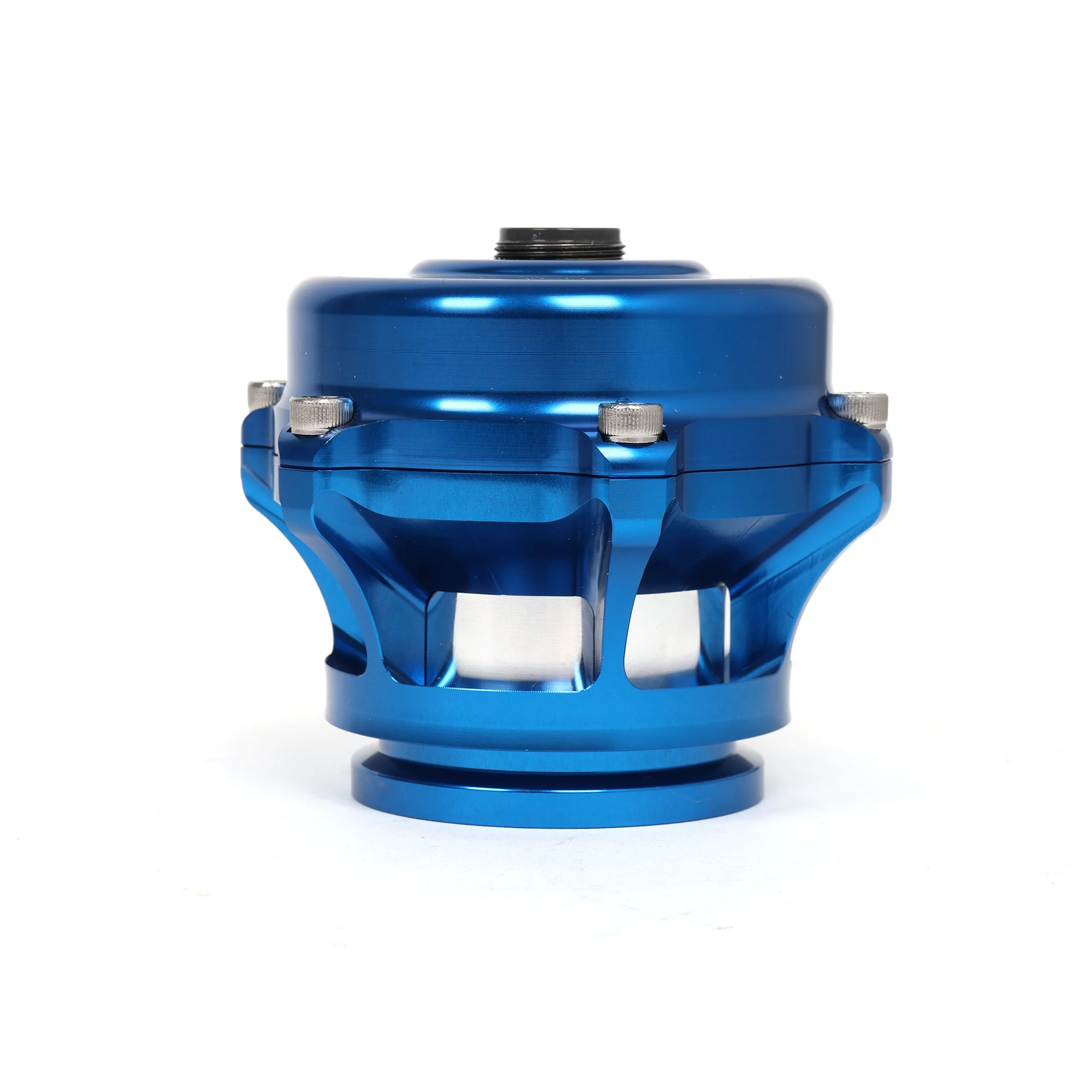

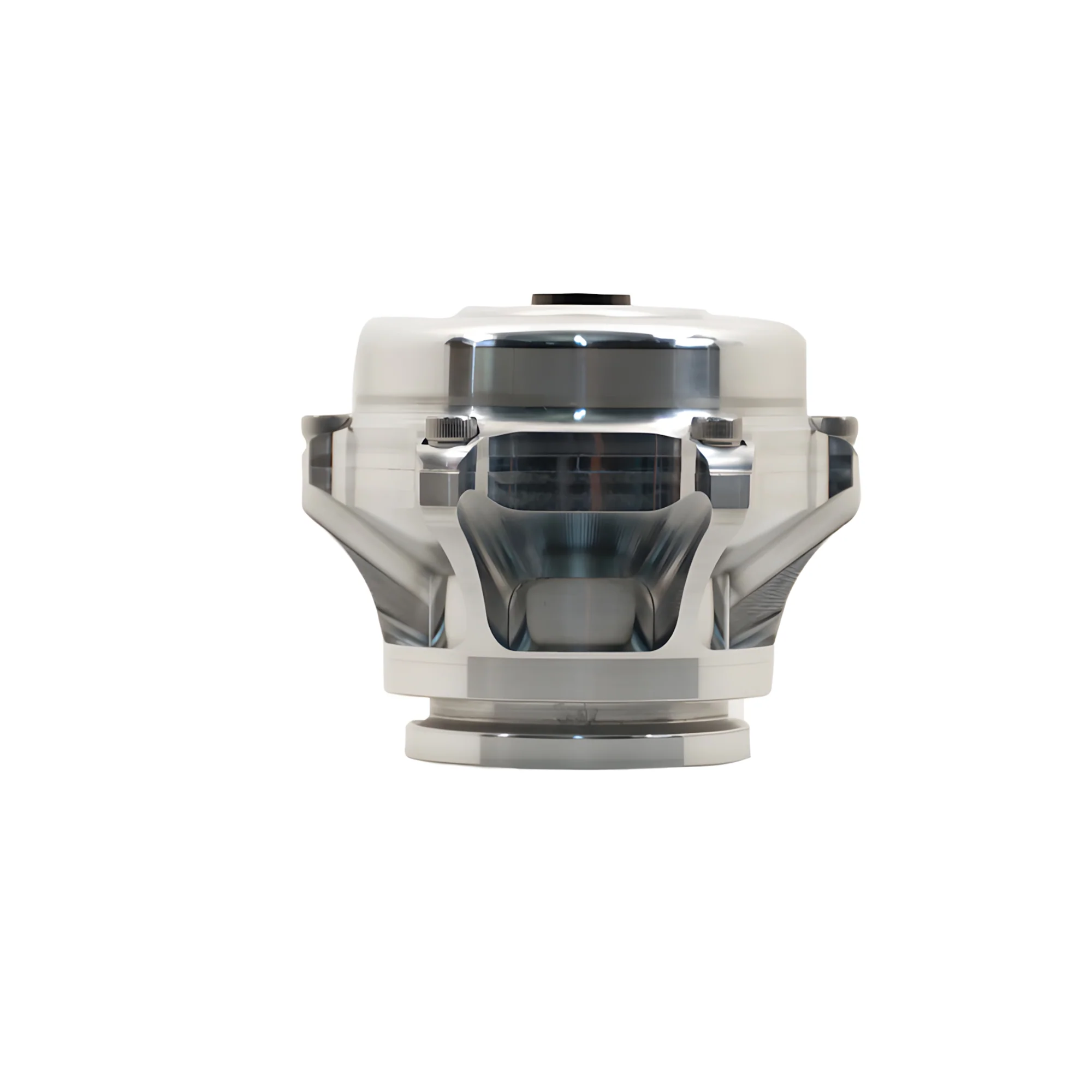

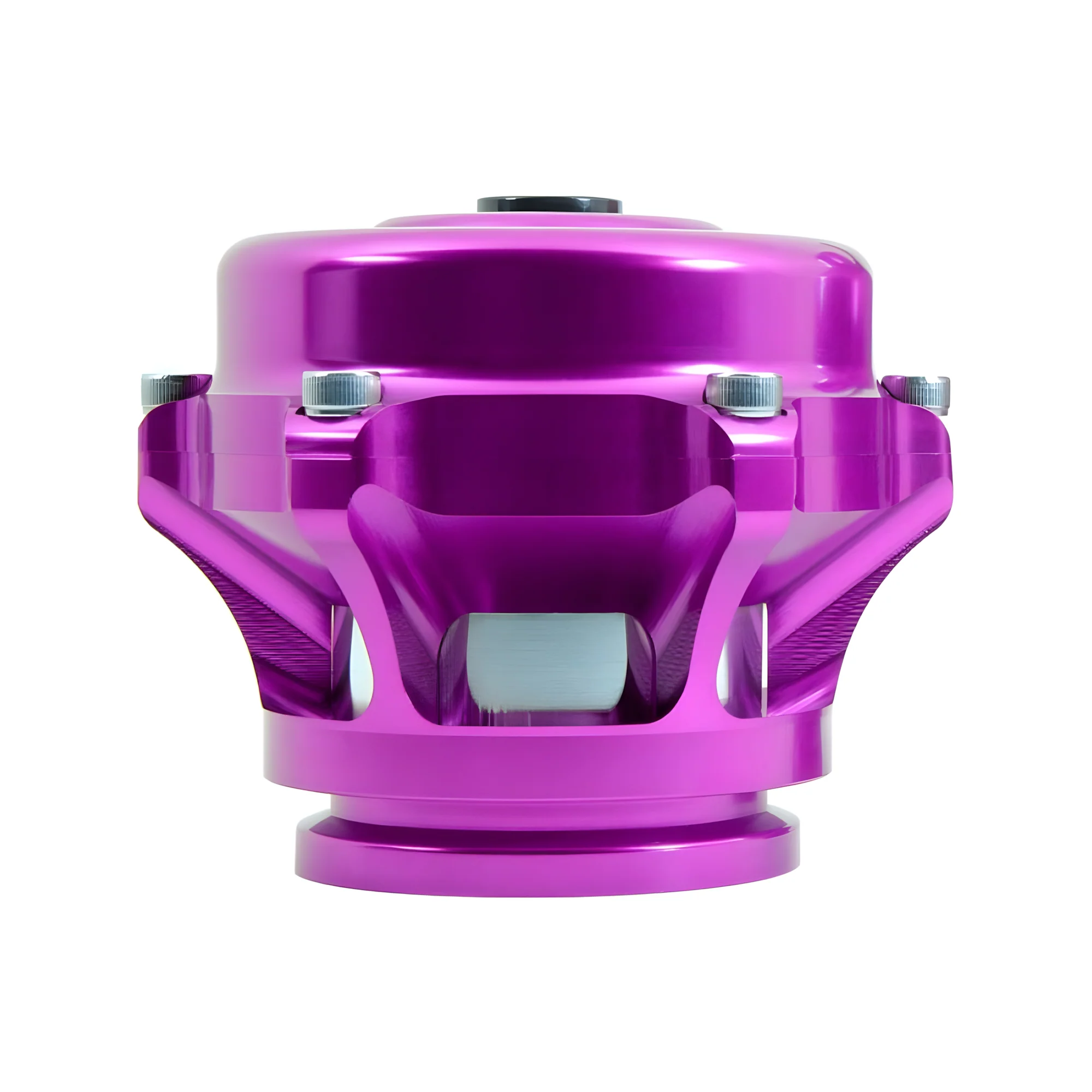

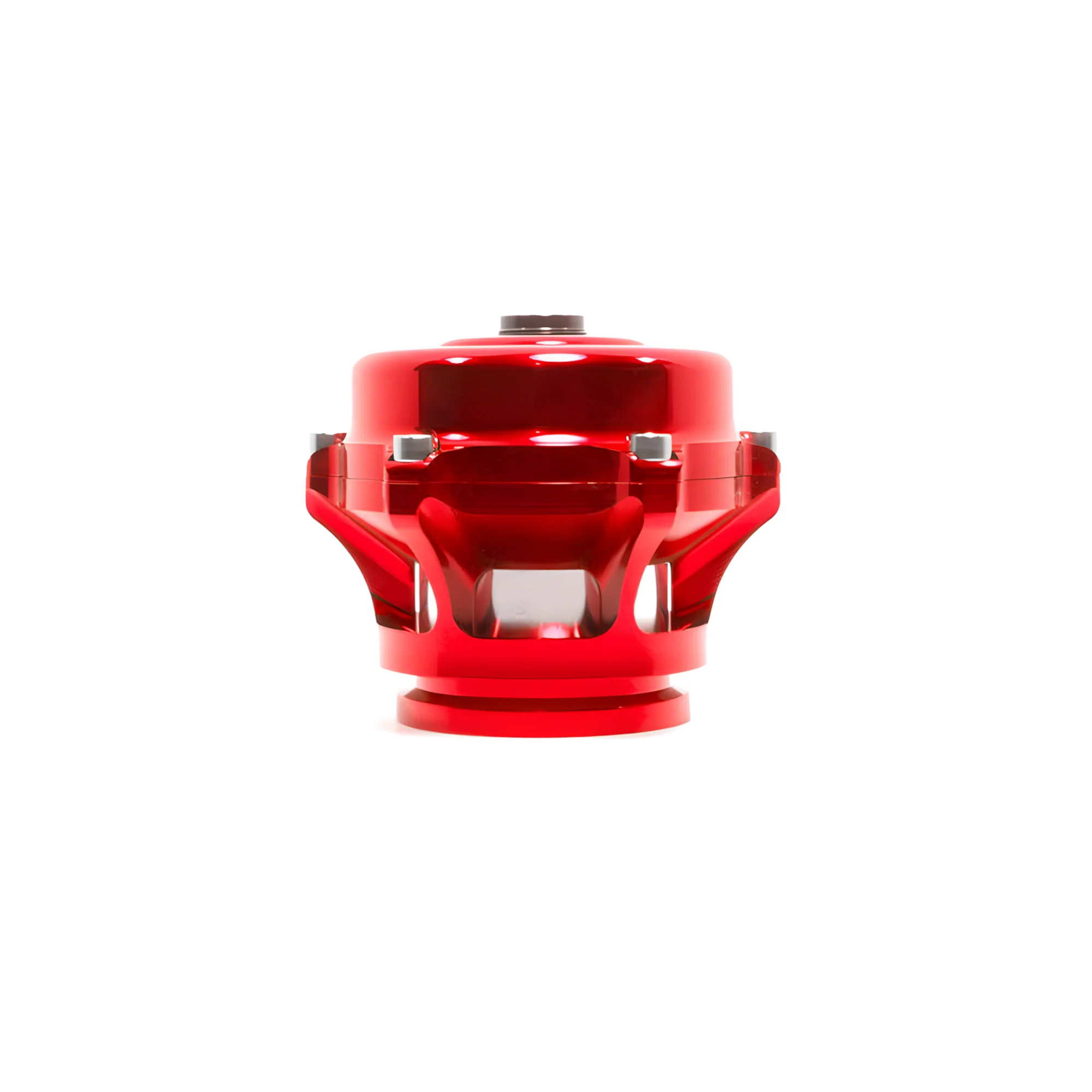

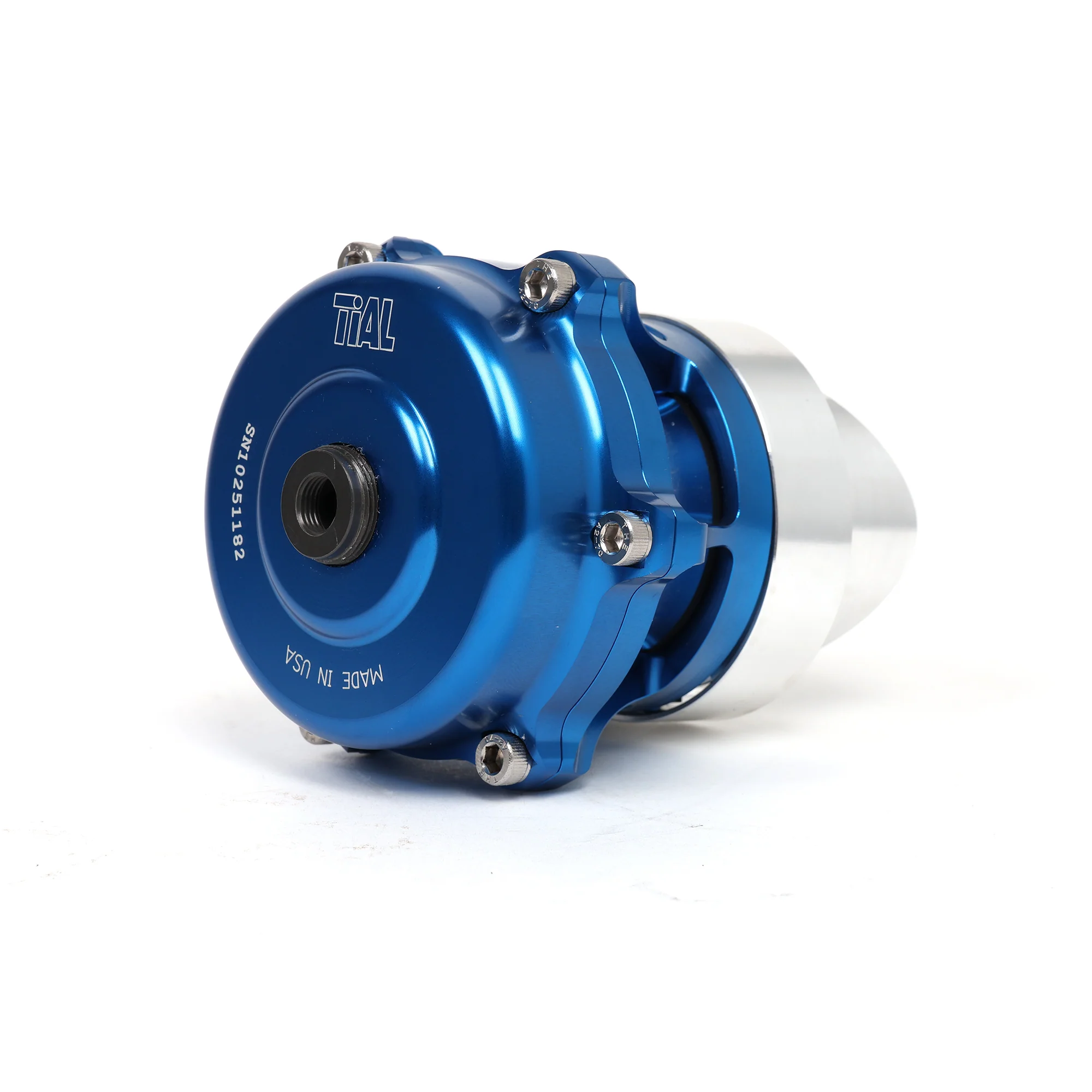

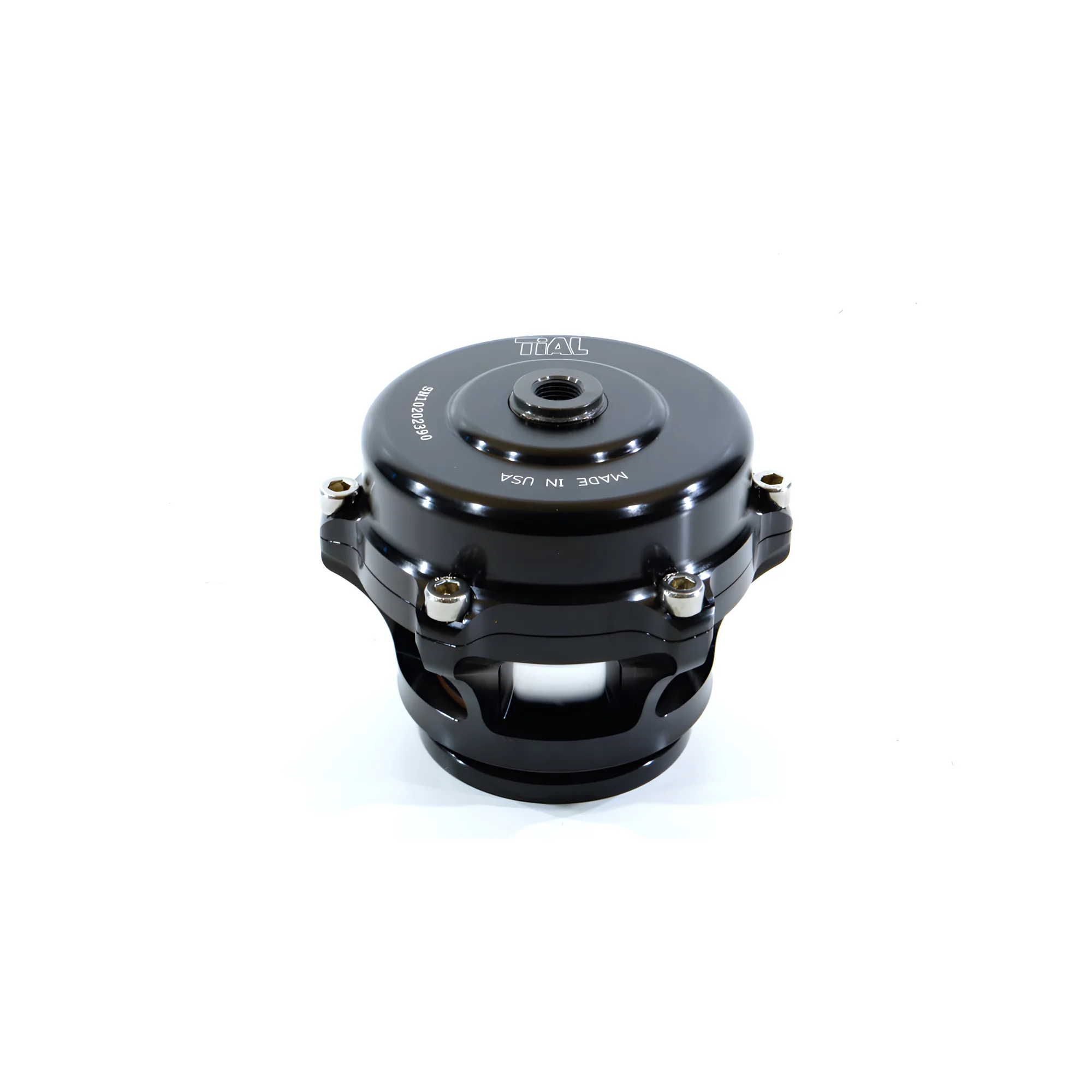

V-band mounting with stainless steel hardware keeps the install clean and the connection tight. The included 10mm hose barb banjo fitting gives the valve a direct, short signal path from your boost reference port, which improves response time off throttle. The housing is available in five anodized finishes - Black, Blue, Red, Purple, and Silver - so it works with just about any engine bay color scheme.

Why the 10 PSI spring? The 10 PSI spring is the most versatile option in the TiAL Sport Q spring lineup. It keeps the valve closed under normal boost pressure while allowing clean, full opening during pressure relief events. It works well for street and track setups running boost in the 10-25 PSI range and is the correct choice for most daily-driven turbocharged builds. If you're running a low-pressure supercharger or a vacuum-referenced system, TiAL offers alternative spring rates sold separately to dial in opening threshold precisely.

Compatible with all standard 2.5-inch TiAL V-band weld flanges. Not intended for use with modern 1.5T or 2.0T Honda/Acura applications. For everything else running boost, this is one of those parts you install once and never think about again.

Key Features

• TiAL Sport Q 50mm Blow Off Valve - 10 PSI spring included
• 50.5mm valve flows 60% more air than the original TiAL BOV design
• Rated to 220 lb/min maximum flow - supports up to 1,800 horsepower
• CNC machined 6061 aluminum body, internals, and banjo air fitting
• Clamped Viton O-ring valve seal - resists heat, boost pressure, and chemical exposure
• Hard anodized, Teflon lubricated valve stem for smooth, consistent operation
• Nomex-reinforced high-temp silicone actuator diaphragm

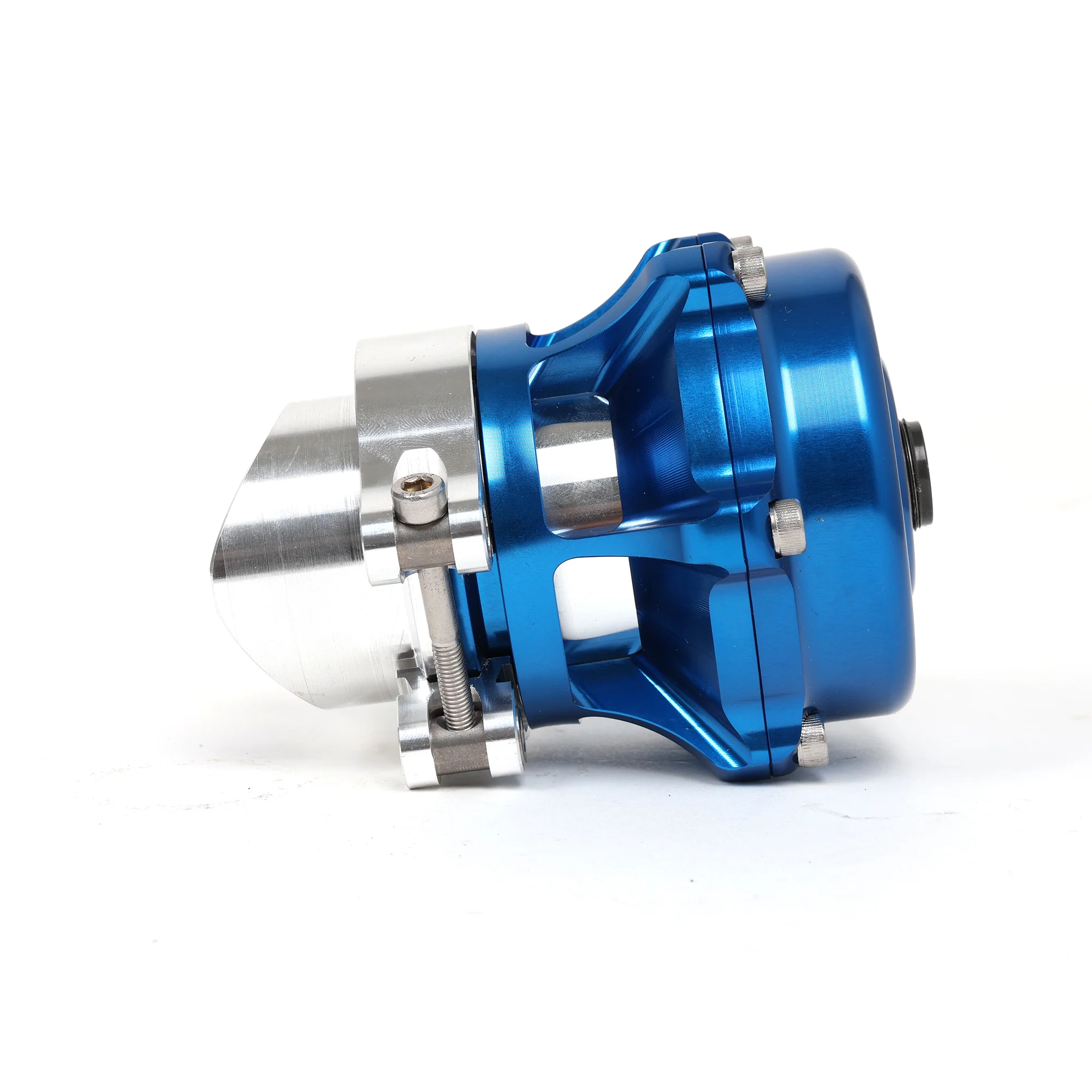

• V-band mounting with stainless steel hardware - fits standard TiAL weld flange
• 10mm hose barb banjo-style air fitting for fast boost signal response
• Available in Black, Blue, Red, Purple, and Silver anodized finishes
• Direct bolt-on replacement for existing TiAL Sport Q or original TiAL BOV installations

What's Included

• TiAL Sport Q Blow Off Valve Assembly (with 10 PSI spring pre-installed)
• TiAL V-band Clamp

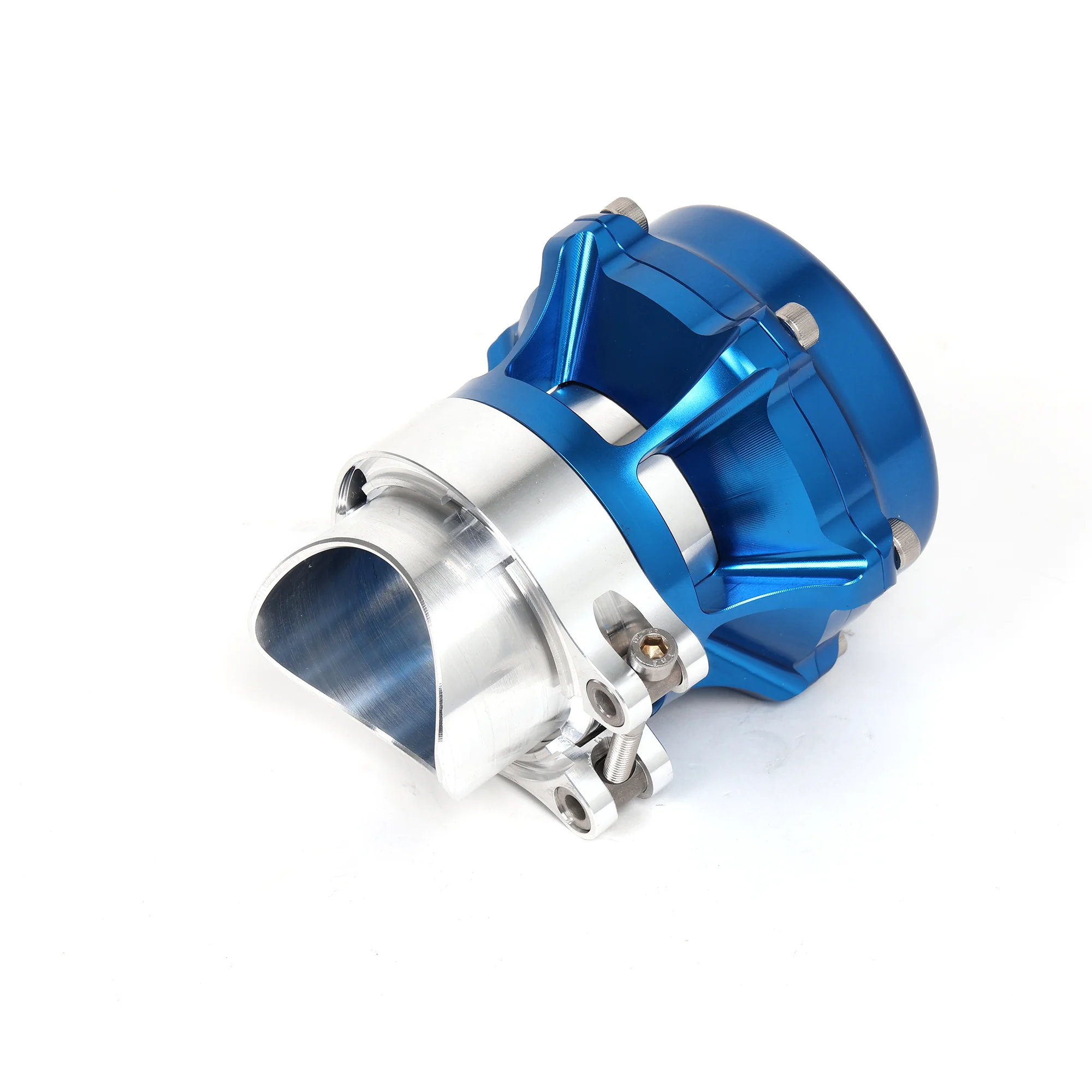

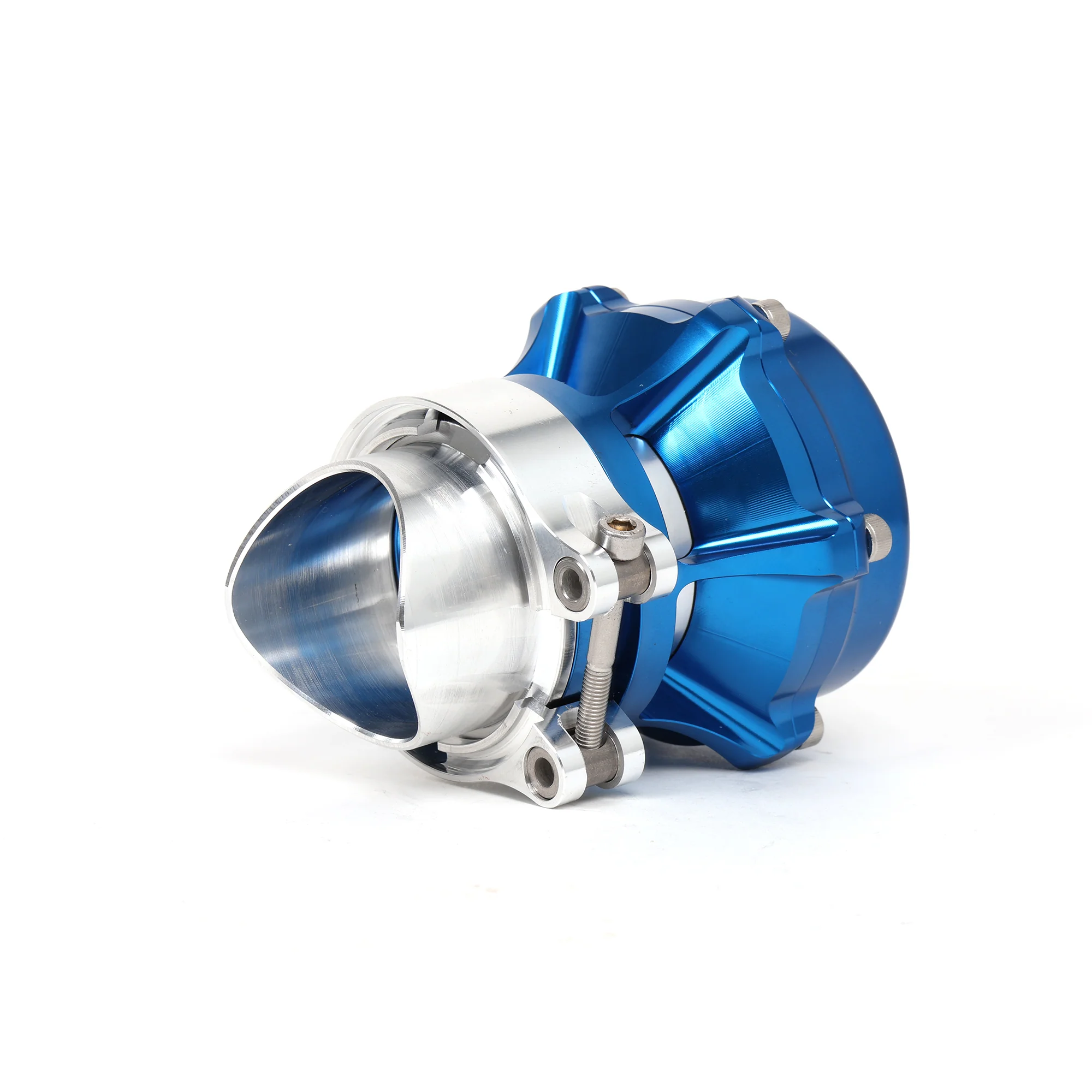

• V-band Weld Flange (fits 2.5" intercooler piping)
• TiAL Banjo Style Air Fitting with 10mm Hose Barb
• Weld Flange High Pressure O-ring
