Haltech 1500 Elite ECU

Haltech Elite 1500 ECU

If you're K-swapping into something the factory ECU was never designed to run, or you've outgrown what KPro and KTuner can do on a stock K20A2 or K24Z3, the Haltech Elite 1500 ECU is the standalone most K-series builders end up on. It's the ECU we reach for when a build has drive-by-wire, dual i-VTEC cam control, a custom trigger setup, or race features the OEM box just won't touch. Four injector outputs and four ignition outputs are enough for any 4-cylinder Honda or 2-rotor swap, and the sealed IP67 case means it's not living in fear of a hot engine bay.

What It Is and Why It Works

The Elite 1500 (Haltech part number HT-150900) takes over everything the factory ECU does and a lot it doesn't. You get full control of fueling, ignition timing, knock, idle, boost, and any sensors you want to wire in. For K-series specifically, that means proper dual i-VTEC cam control for K20Z, K24Z, and K24A2 engines, electronic lift control, and full DBW support without needing a separate throttle controller. If you're running a K-swap into an FRS/BRZ, an S2000, a Miata, or anything that didn't come with a K-series ECU originally, the Haltech 1500 handles all the trigger patterns natively.

The reason people pick this ECU over staying on the OEM box with KPro or KTuner is simple. The OEM ECU is great until it isn't. If your build needs anything the factory ECU wasn't programmed to do, like running a non-Honda trigger, controlling a Bosch DBW pedal and throttle body assembly from scratch, running staged injection, or wiring in real motorsport features (rolling anti-lag, traction control, launch control, mappable per-gear ignition), you're out of road with KPro. The Elite 1500 is where you go when the build has outgrown reflashing the factory computer.

Onboard data logging is 2MB and runs up to 40 channels, which is enough for tuning and chasing problems without bolting on external gear. The dual CAN bus is what makes the Haltech ecosystem actually work as a system: plug in an iC-7 or UC-10 dash, add the CAN keypad, or run the wideband O2 kit over CAN instead of fighting with an analog input. That CAN expandability is a real reason people stay in the Haltech world once they're in it.

Specs

Fitment

The Elite 1500 is a universal standalone ECU. It runs on any engine you can wire and tune it to. For Honda and Acura builds, Haltech offers Plug 'n' Play adapter harnesses that drop the Elite 1500 straight into the factory engine harness with no cutting or splicing:

For everything else (K-swaps into EG, EK, EF, S2000, FRS/BRZ, Miata, RX-7, or any custom chassis), you'll need a universal harness or a chassis-specific aftermarket K-series harness. Rywire, Wiring Specialties, and Brewed Motorsports all make harnesses purpose-built for the Elite 1500 on K-series engines.

What to Know Before You Buy

This is a real motorsport ECU, not a tuner box you plug in and forget about. A few things to keep in mind:

You need a tuner who knows Haltech. NSP is good software, but it's not KPro. If your local shop only tunes KPro and KTuner, ask before you order. Haltech is well supported in most major performance markets, but it's worth a phone call to confirm someone nearby can dial it in. A bad tune on a standalone is worse than a stock K-series.

Make sure four injector and four ignition outputs are enough. The Elite 1500 covers any 4-cylinder Honda (K20, K24, B-series, H22, D-series, F-series) and any 2-rotor running direct fire. If you're planning more than two stages of injection, running a 6-cylinder direct fire, or building a 20B or V8 swap, step up to the Elite 2500. Same case, same software, same dimensions, eight injector and eight ignition outputs instead of four.

The 1500 is overkill if you don't need DBW or dual cam. Cable-throttle K20A builds with single intake cam control can run the cheaper Elite 1000. If you're running any K20Z, K24Z, K24A2, or doing a build with electronic throttle, the 1500 is the right call.

You'll need more than just the ECU. At minimum, plan on a wiring harness (PnP if HR carries one for your chassis, universal otherwise), a wideband O2 sensor (Haltech's CANbus wideband kit, HT-159976, plugs straight into the CAN bus and skips the analog input headache), and probably a Bosch knock sensor with bracket. If you're running DBW, you also need a compatible pedal assembly and throttle body (Haltech makes both: HT-011900 pedal and HT-011802 throttle body). Add a dash via CAN (iC-7 or UC-10) when you're ready and you've got a complete standalone system.

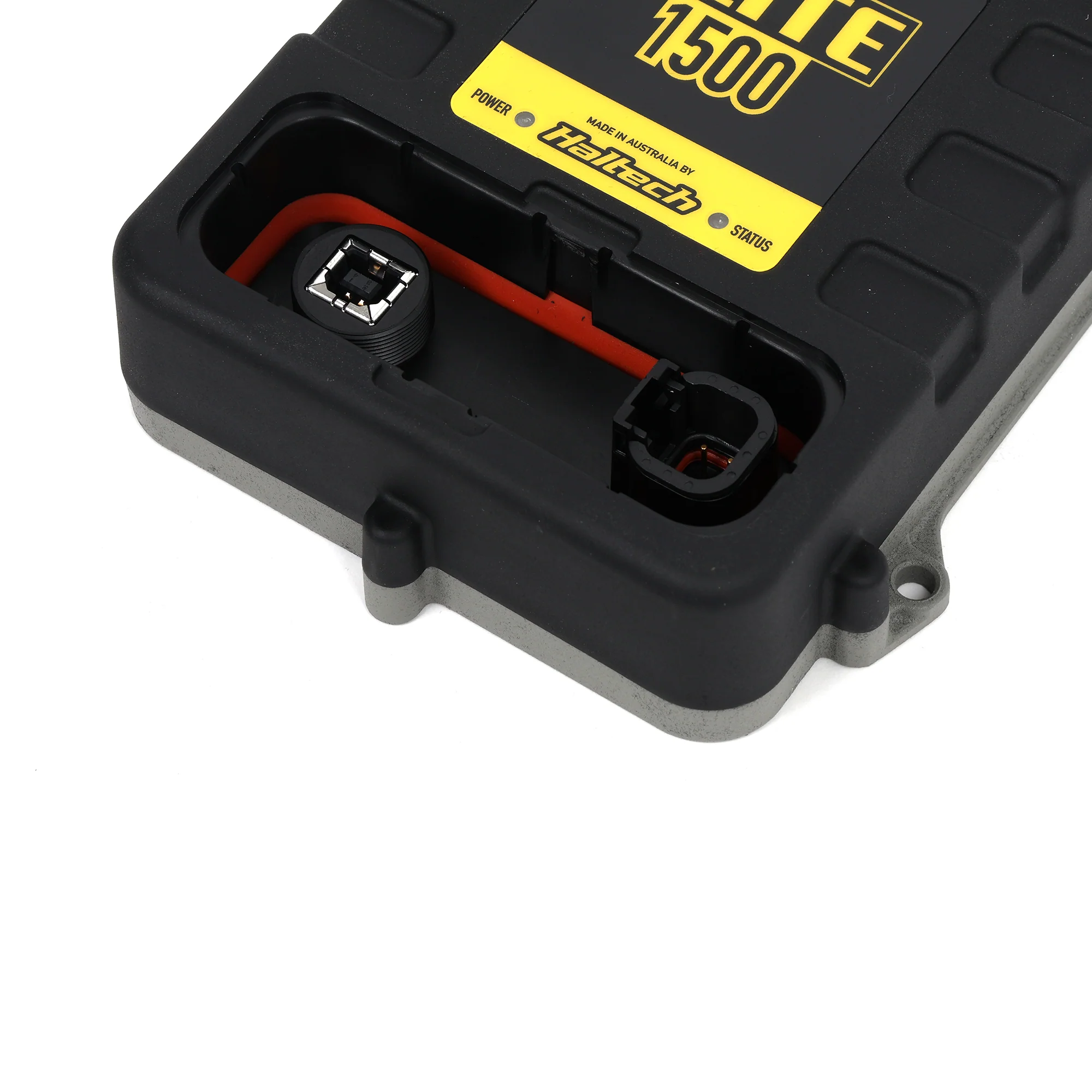

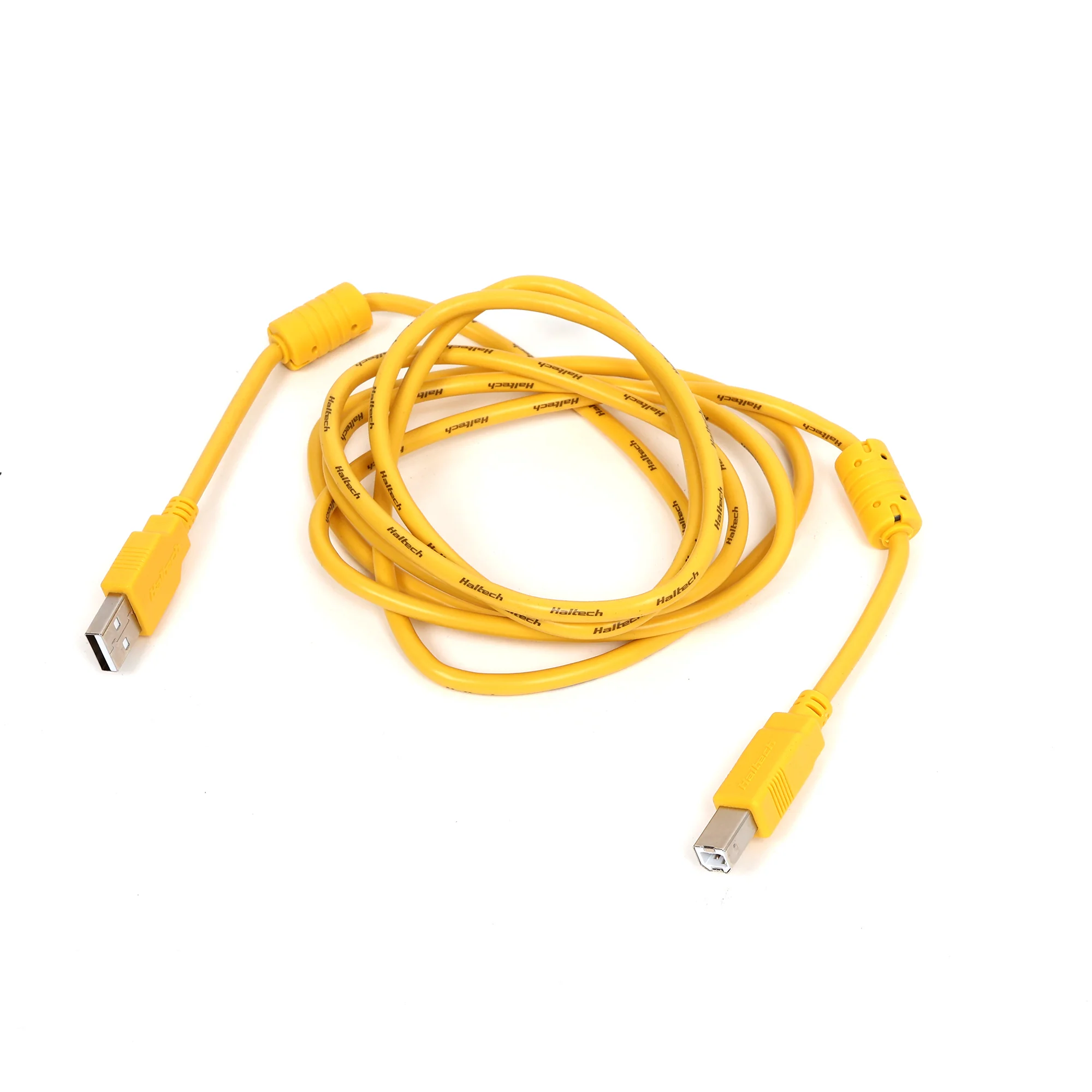

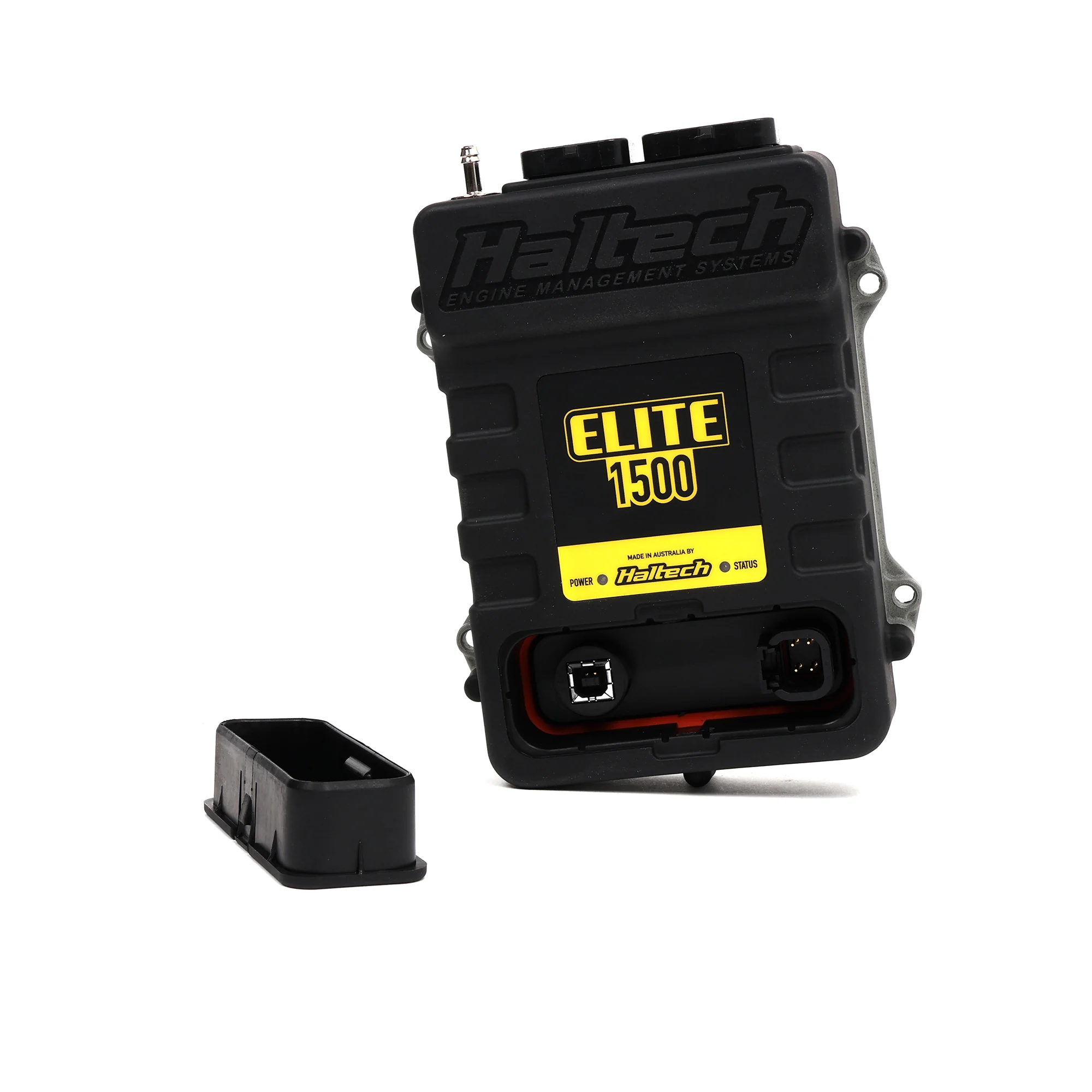

IP67 sealing depends on the install. The ECU is sealed only when the USB cap is fitted and the waterproof USB cable is installed. Leave the USB port open with the cap dangling and you've defeated the rating. Mount it accordingly.

This is the ECU we run when a build has graduated past stock-plus and into actual standalone territory. If you're not sure whether you've reached that point yet, you probably haven't, and KPro or KTuner is still the right answer. When you do reach it, the Haltech Elite 1500 is the box most K-series builders land on for good reason.
