AEM Tru-Time Adjustable Cam Gear for Honda 1.5/1.6L D Series

AEM Tru-Time Adjustable Cam Gear - Honda D-Series Engines

Want more power without swapping cams? The AEM Tru-Time adjustable cam gear lets you advance or retard your cam timing to optimize where your D series engine makes power. If you've milled your head for higher compression, you're running boost, or you've installed aftermarket cams, adjusting your cam timing can give you noticeable gains in horsepower and torque. The AEM cam gear adjusts in true one-degree increments with laser-etched timing marks, so you're not guessing where the cam's positioned. You dial it in, lock it down, and it stays there.

Why You'd Adjust Cam Timing on Your D Series

When you mill your head to bump compression on your D15 or D16, you're advancing the cam timing slightly because you're removing material from the head deck. That changes when the valves open and close relative to piston position. If you don't correct the cam timing after milling the head, your power curve shifts and you might lose power in certain RPM ranges. Same thing with turbo setups or aftermarket cams. Sometimes advancing or retarding the cam timing a few degrees moves your power band to where you actually use it. An adjustable cam gear lets you fine-tune that without opening the engine back up.

True One-Degree Increments

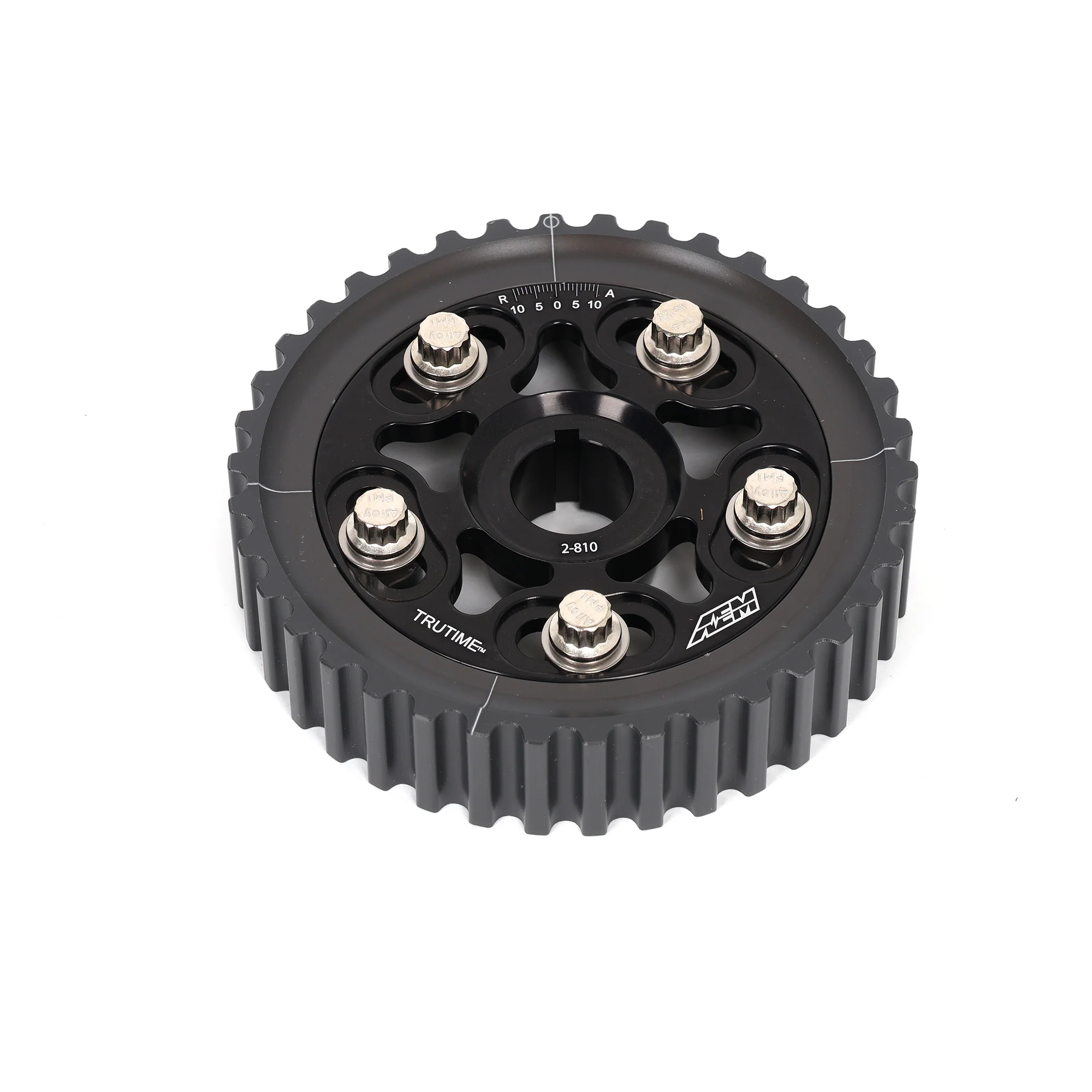

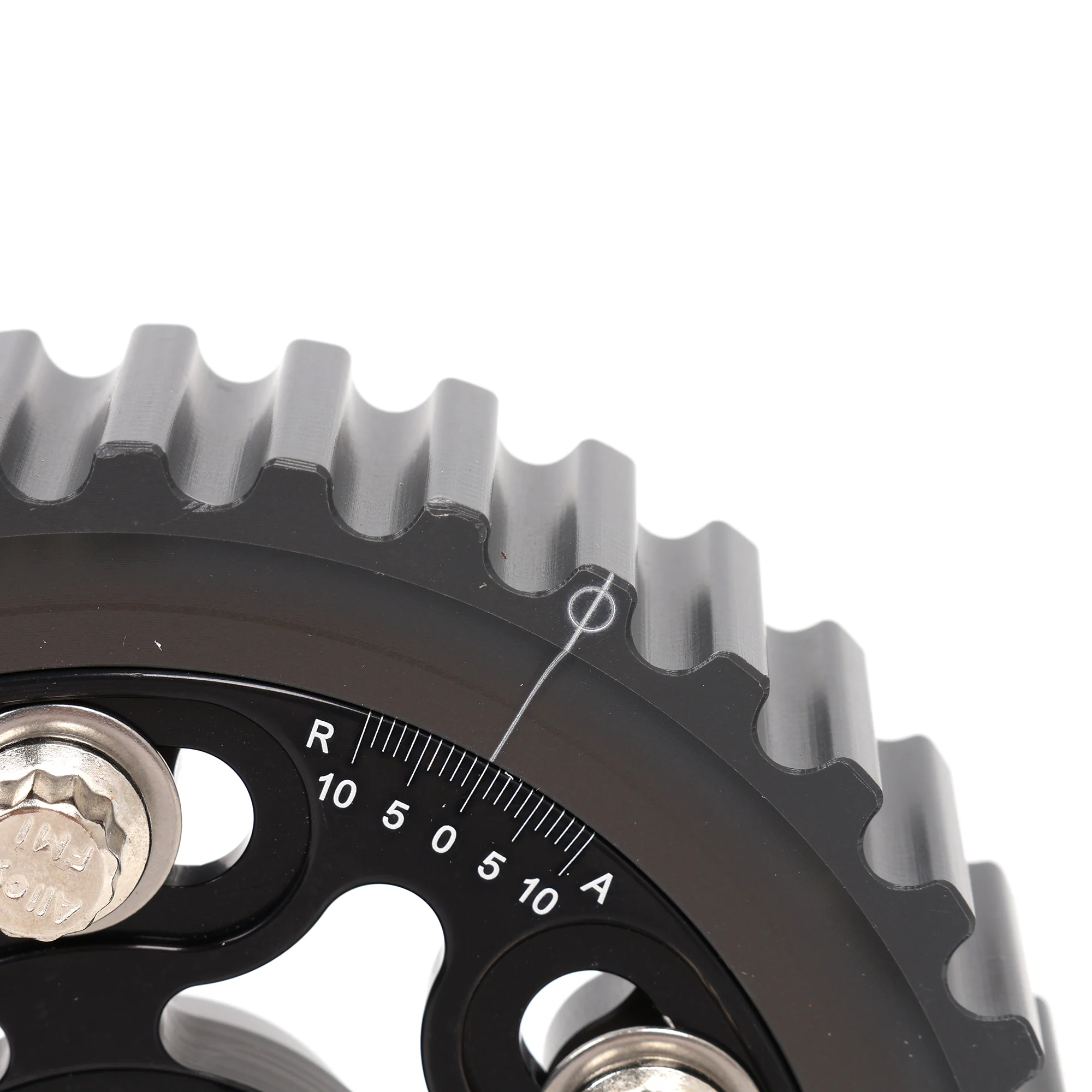

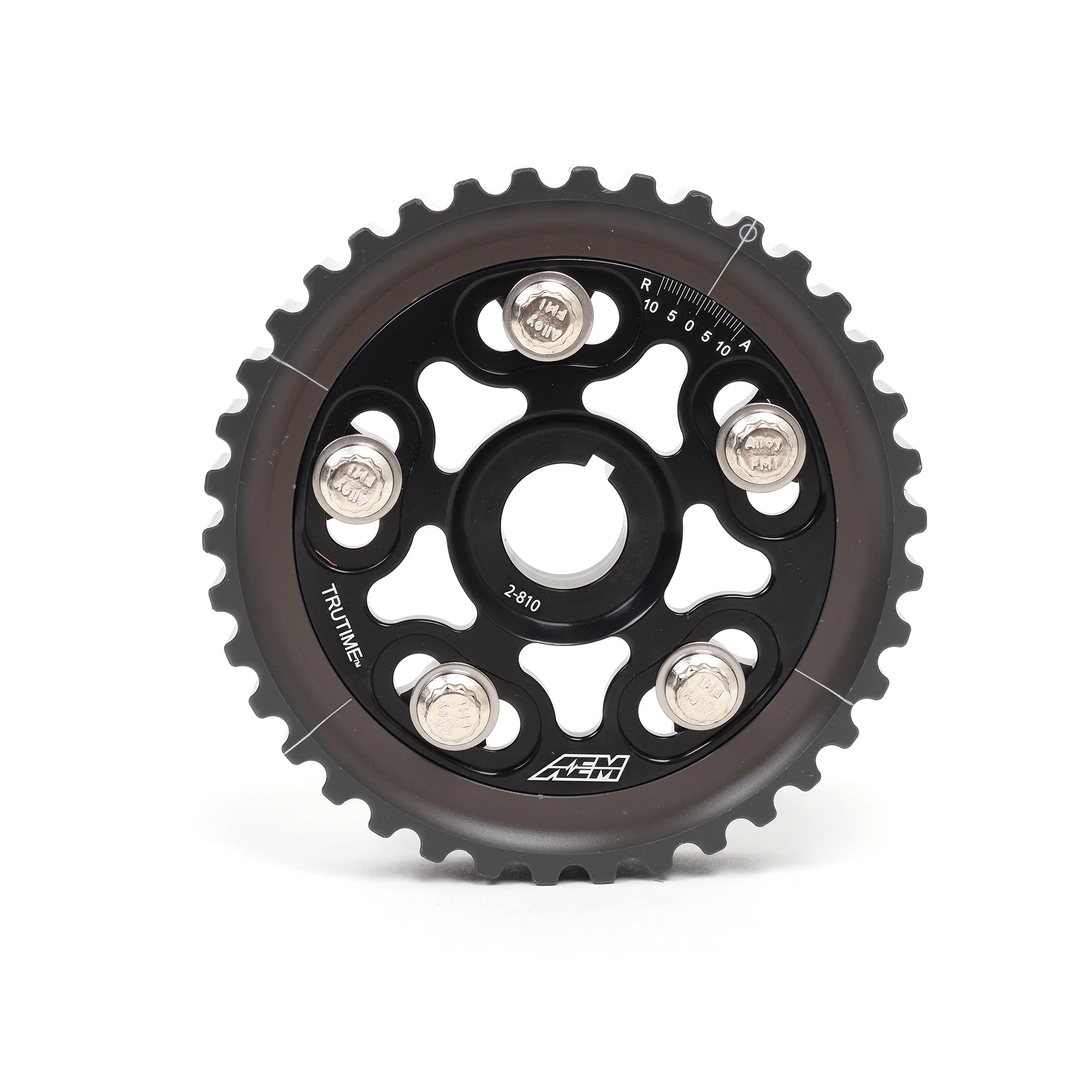

The AEM cam gear adjusts in true one-degree increments. The timing marks are laser-etched into the gear, so you can see exactly where you're setting the cam timing. You're not eyeballing it or hoping you got it close. AEM includes recommended base cam settings with the gear to give you a starting point, then you can fine-tune from there on the dyno or with datalogs.

CNC Machined from 6061-T6 Aluminum

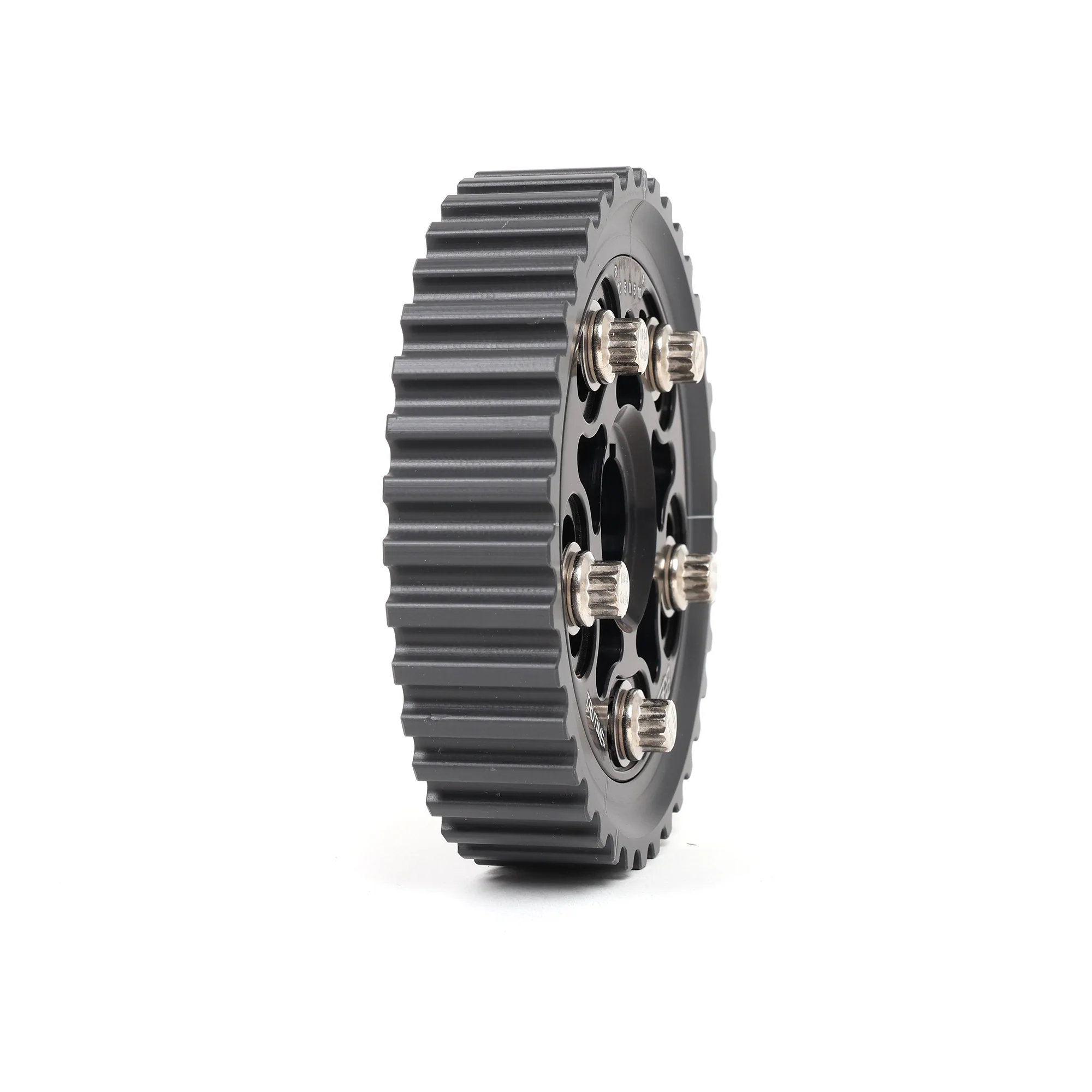

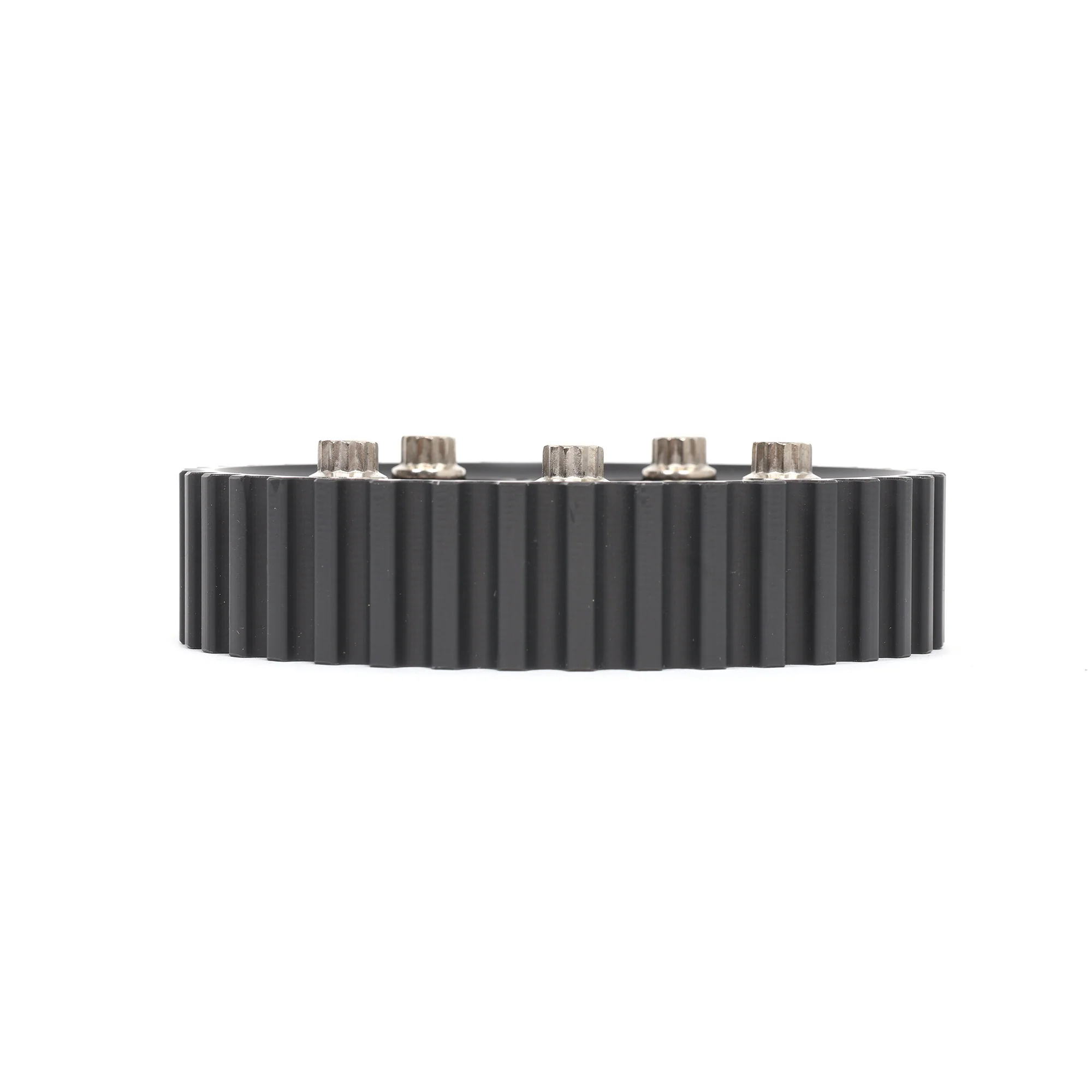

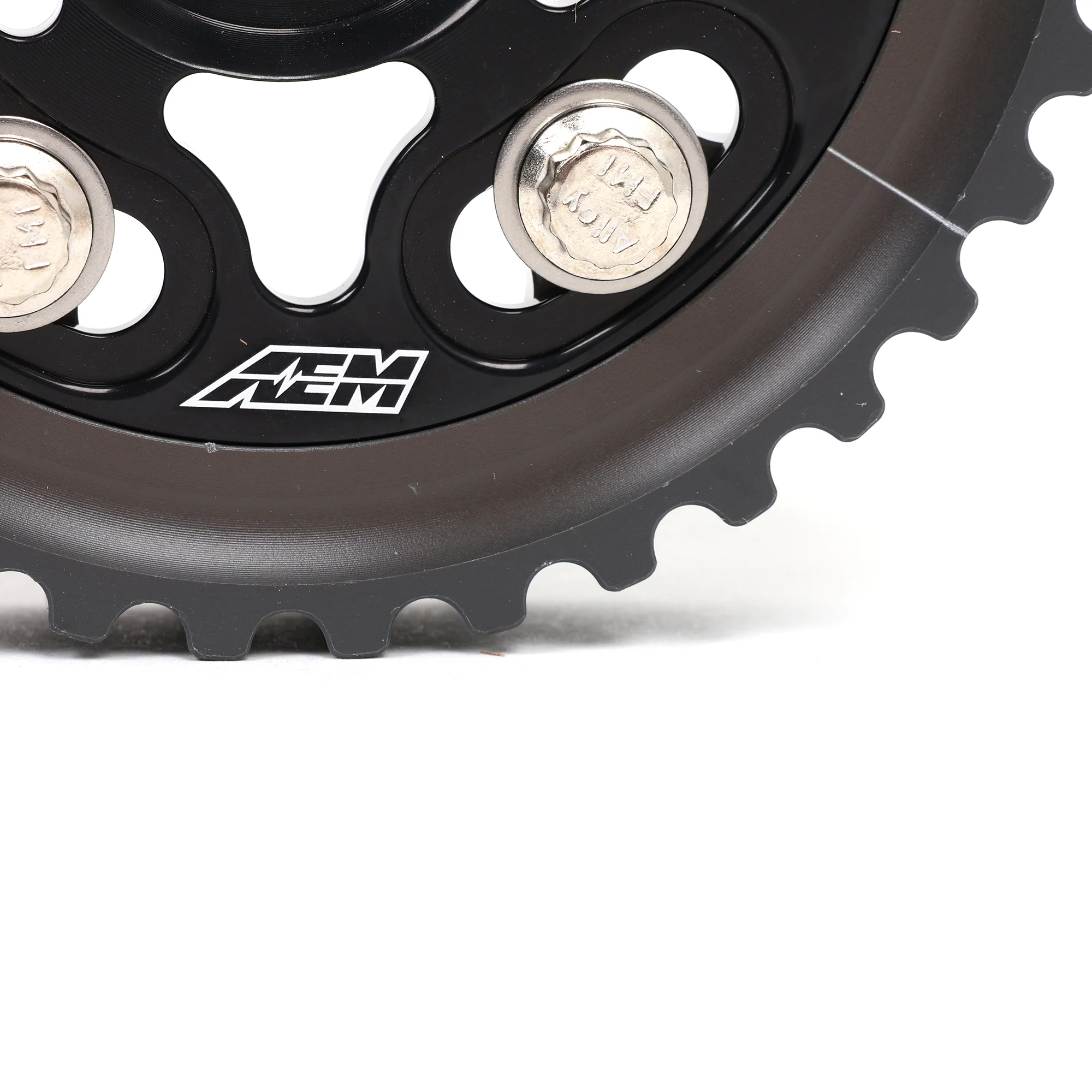

AEM machines the cam gear from 6061-T6 billet aluminum and hard anodizes the belt surface for durability. The gear teeth are precision-cut to reduce timing belt wear, which matters if you're actually driving the car instead of just looking at it. The included grade 8 hex bolts have integrated washer flanges to spread the load evenly when you torque them down, so you're not stripping threads or cracking the cam.

What You Get

• AEM Tru-Time adjustable cam gear

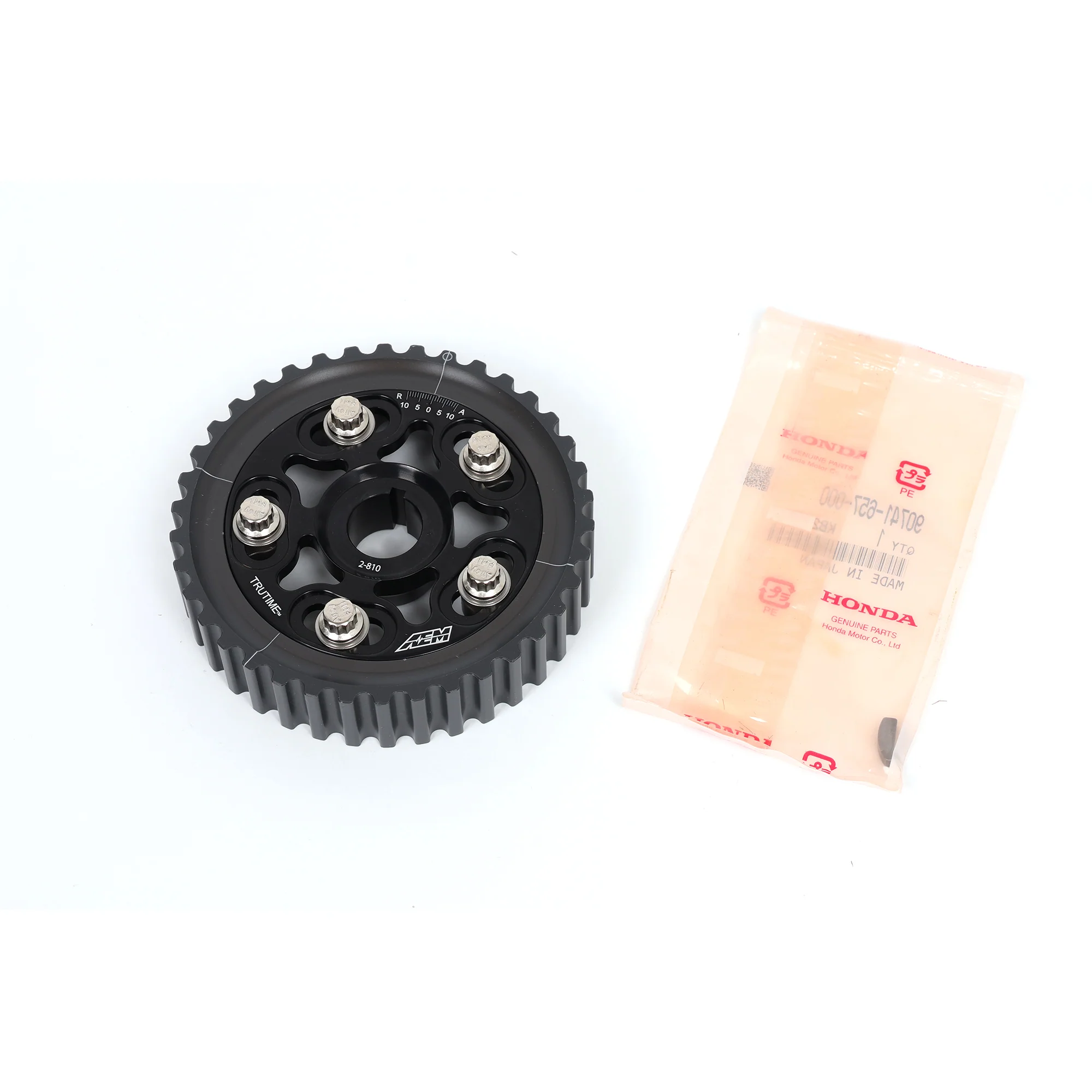

• OEM Honda Cam Gear Key (90741-657-000)
• CNC machined from 6061-T6 billet aluminum
• Hard anodized belt surface
• Laser-etched timing marks
• True one-degree increment adjustments
• Precision-cut gear teeth to reduce timing belt wear
• Grade 8 hex bolts with integrated washer flanges
• Recommended base cam settings included

Compatible Engines

• D15B7
• D16A6
• D16Z6

Fits Your Car

• 1988-1995 Honda Civic
• 1988-1991 Honda CRX
• 1993-1995 Honda Del Sol

Note: Adjusting cam timing requires dyno tuning or datalogs to dial in properly. Don't just install the cam gear and guess at timing. Get it tuned. AEM includes recommended base settings to get you started, but you'll need to fine-tune from there based on your specific engine setup. SOHC D-series engines only. This cam gear fits 5-bolt SOHC D series cams (D15B7, D16A6, D16Z6).
